Lead Shielded 200-Liter Drum Overpack

Name: Lead Shielded 200-Liter Drum Overpack - Nuclear Shields
SKU: SWB-E0022392

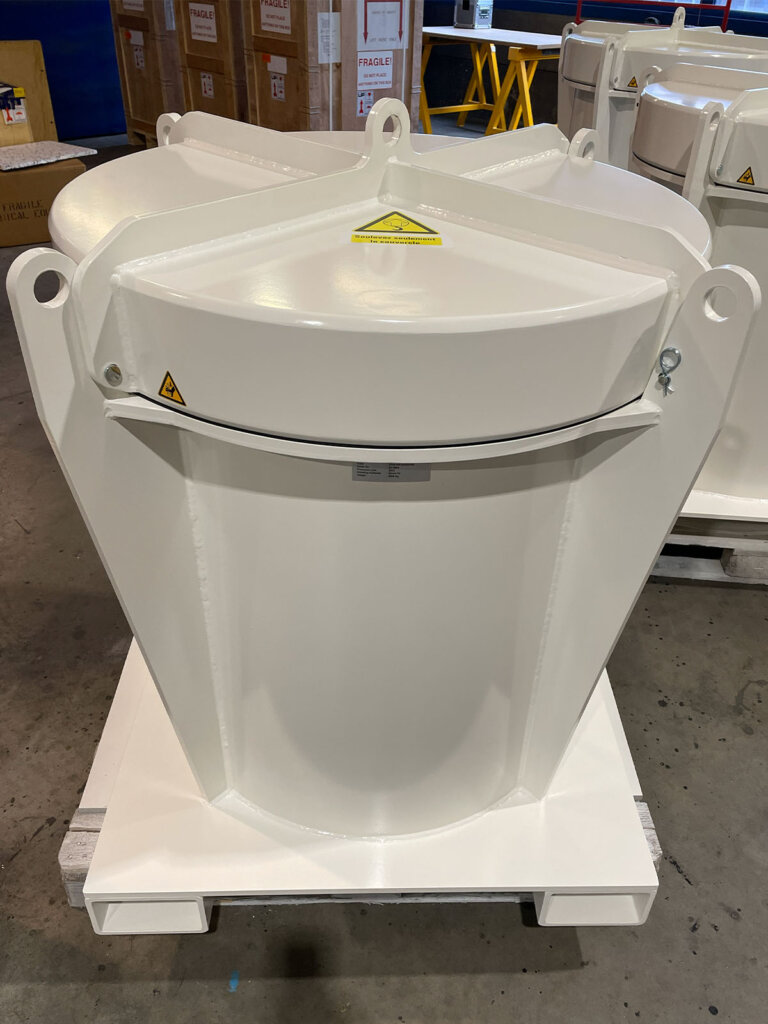

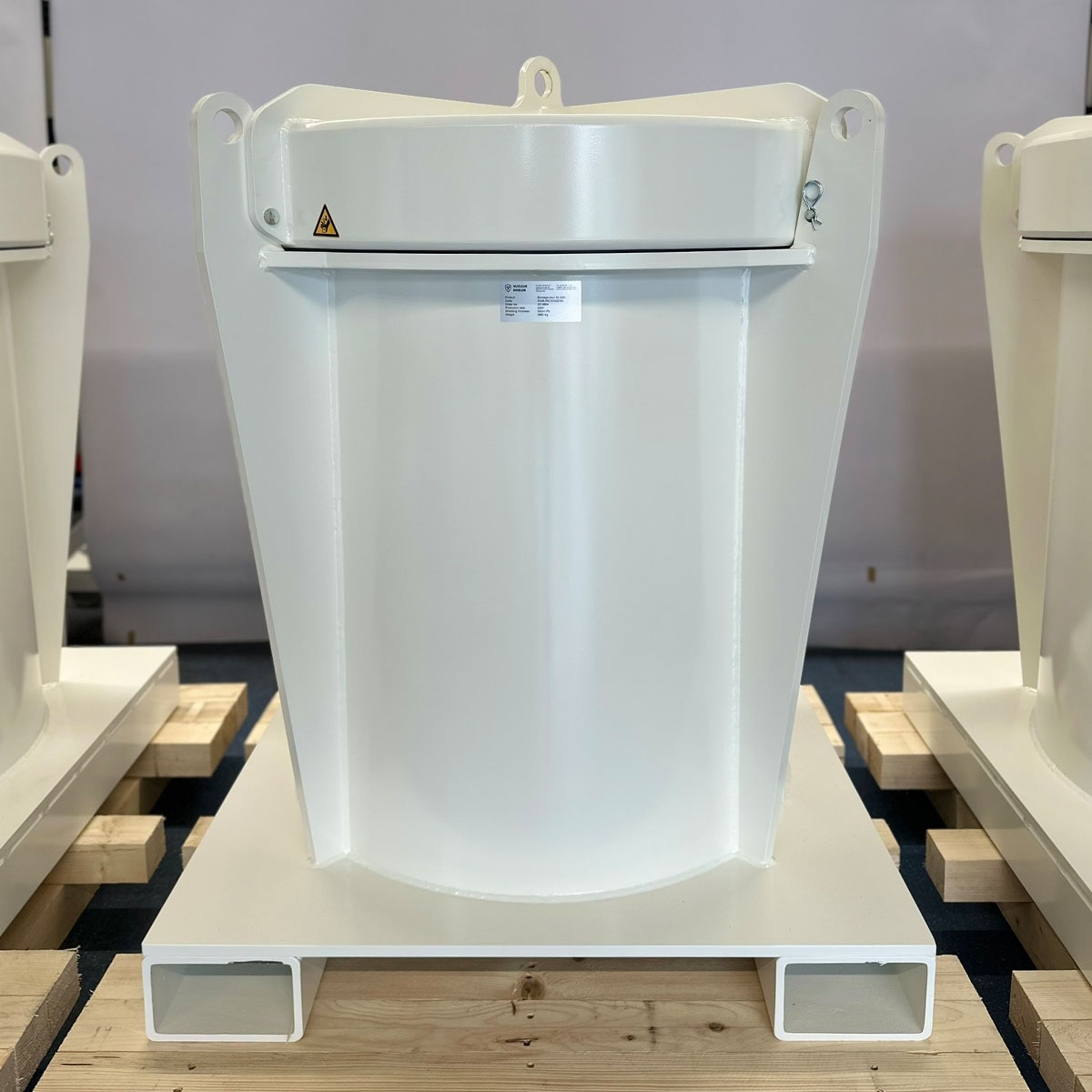

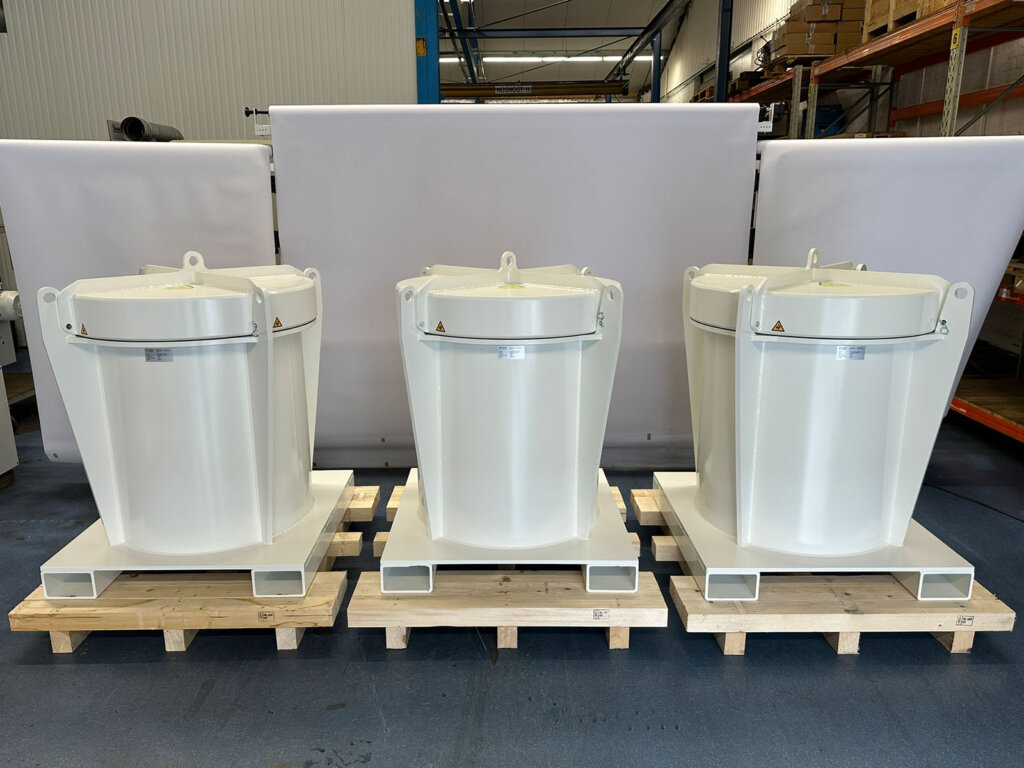

The Lead Shielded Drum Overpack provides effective radiation shielding and secondary containment for standard 200-liter waste drums. With 50 mm lead shielding on all sides and a specialized two-component polyurethane epoxy coating, this overpack combines dose rate reduction with excellent decontamination properties for nuclear facility operations.

Nuclear Shields engineered this overpack with uniform 50 mm lead shielding on all surfaces—walls, lid, and base. This consistent shielding thickness simplifies dose rate calculations and ensures predictable attenuation regardless of drum orientation within the overpack. The symmetrical design eliminates weak points that could create localized dose rate hotspots during storage or handling. The 50 mm lead thickness provides substantial gamma attenuation for typical LLW and ILW drum contents, reducing surface dose rates to levels suitable for storage areas and routine handling operations.

SKU: SWB-E0022392

Additional information

Shielding material
Lead
Shielding thickness
50 mm
Outside dimensions
1000 x 1000 x 1283 mm (w x d x h)
Inside dimensions
670 x 892 mm (diameter x height)

Add to quote

Product description

Sealed containment

The overpack includes a seal between the body and lid, providing secondary containment for the waste drum inside. This seal prevents the release of contamination in the event of drum failure and contains any liquids that might escape from a compromised primary container. The sealed design also protects drum contents from environmental moisture during storage.

Decontamination-ready surface finish

The exterior features a two-component polyurethane epoxy coating system engineered specifically for nuclear applications:

Acid resistant — Withstands exposure to decontamination chemicals and acidic environments without degradation
Shock resistant — Maintains integrity despite impacts during handling operations
Smooth finish — Non-porous surface prevents contamination ingress and enables thorough cleaning

This coating system supports ALARA principles by facilitating rapid and complete decontamination between uses, minimizing both worker exposure time and contamination spread risk. The smooth finish also simplifies visual inspection for surface contamination during routine monitoring.

Flexible handling options

The overpack accommodates standard nuclear facility material handling equipment:

Forklift shafts — Integrated into the bottom frame for direct pickup by facility forklifts
Corner lifting hooks — Four lifting points at the overpack corners enable crane handling with standard rigging
Center lid lifting hook — A dedicated lift point in the lid center allows independent lid removal for drum loading and unloading

This combination of handling features ensures compatibility with existing facility equipment and supports efficient drum overpacking workflows.

Robust steel construction

The overpack body and lid are fabricated from steel, providing structural integrity for stacking and mechanical protection for the enclosed drum. The rigid construction maintains shielding geometry throughout service life and protects against damage during handling and transport operations.
