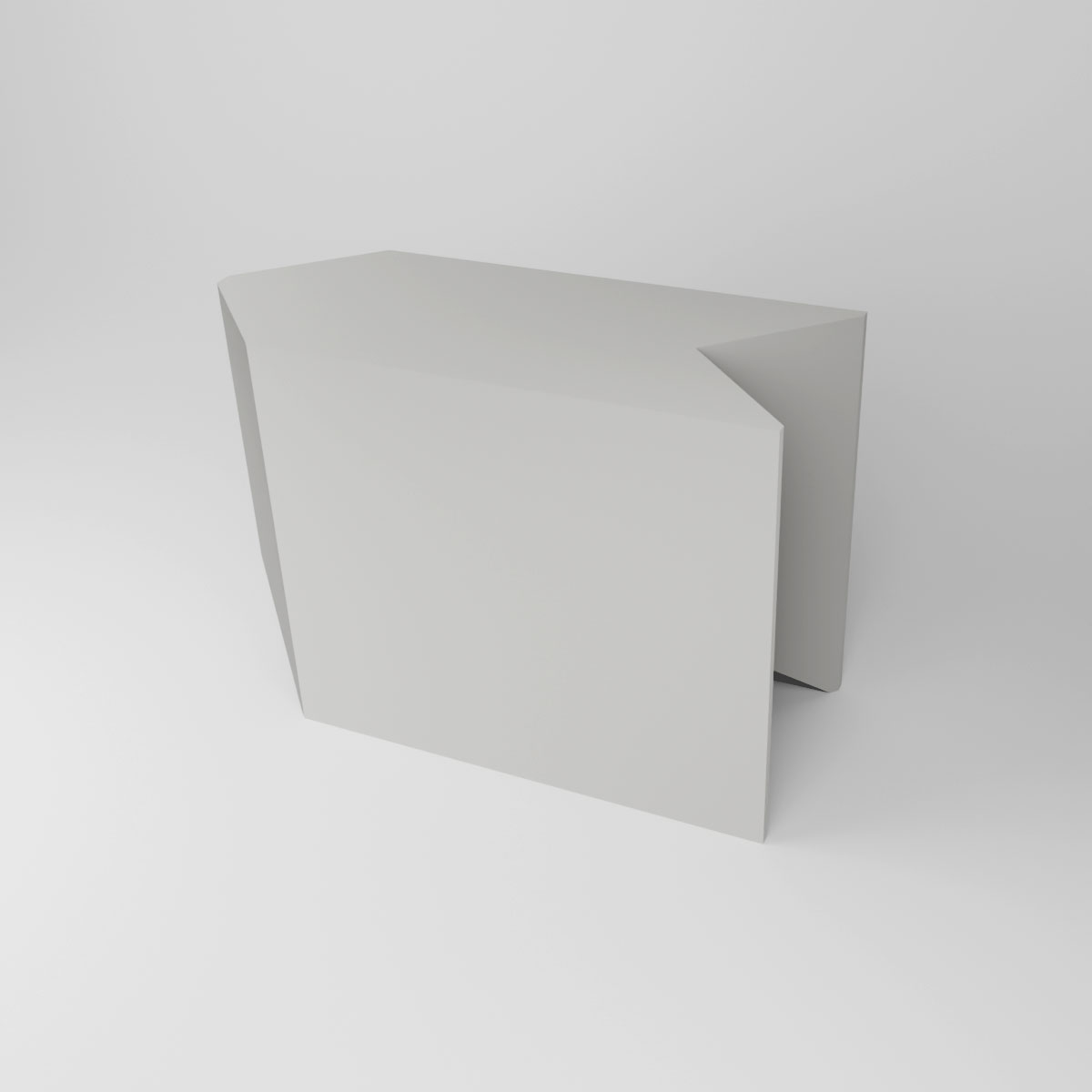

Lead Brick Top Standard
100 x 50 x 83mm (4,1kg)
Interlocking lead brick for capping wall runs. 50mm lead thickness. Flat top surface for finished walls or roof panel support. Runs between Top Start and Top End. Standard epoxy painted off-white RAL 9010, other colors available upon request.
Product description
The Lead Brick Top Standard caps shielding walls along their length, providing a finished upper surface while maintaining the interlocking joint pattern with Middle Standard bricks below. Use these bricks between Top Start and Top End positions for continuous wall capping.
Clean wall termination
The flat upper surface finishes your shielding wall with a uniform top edge. Whether for aesthetic reasons, decontamination ease, or roof panel installation, the Top Standard provides the clean termination that exposed middle bricks cannot.
these bricks are straightforward to place at height while delivering full 50mm lead shielding. The underside chevron profile keys into Middle Standard courses below, completing the radiation barrier without gaps.
Roof panel support
Building an enclosed shielded room? Top Standard bricks create the bearing surface for lead roof panels. The continuous flat top along wall length supports panel weight and provides a stable base for overhead shielding.
Complete system reference
All 12 brick types for complete wall assemblies:
| Position | Start | Standard | Corner | End |
|---|---|---|---|---|
| Base | LB-50-BS | LB-50-B | LB-50-BC | LB-50-BE |
| Middle | LB-50-MS | LB-50-M | LB-50-MC | LB-50-ME |
| Top | LB-50-TS | LB-50-T | LB-50-TC | LB-50-TE |
Turnkey shielded workspaces
Lead Brick Caves include all brick types pre-counted for standard configurations. Ready to assemble without individual planning.
